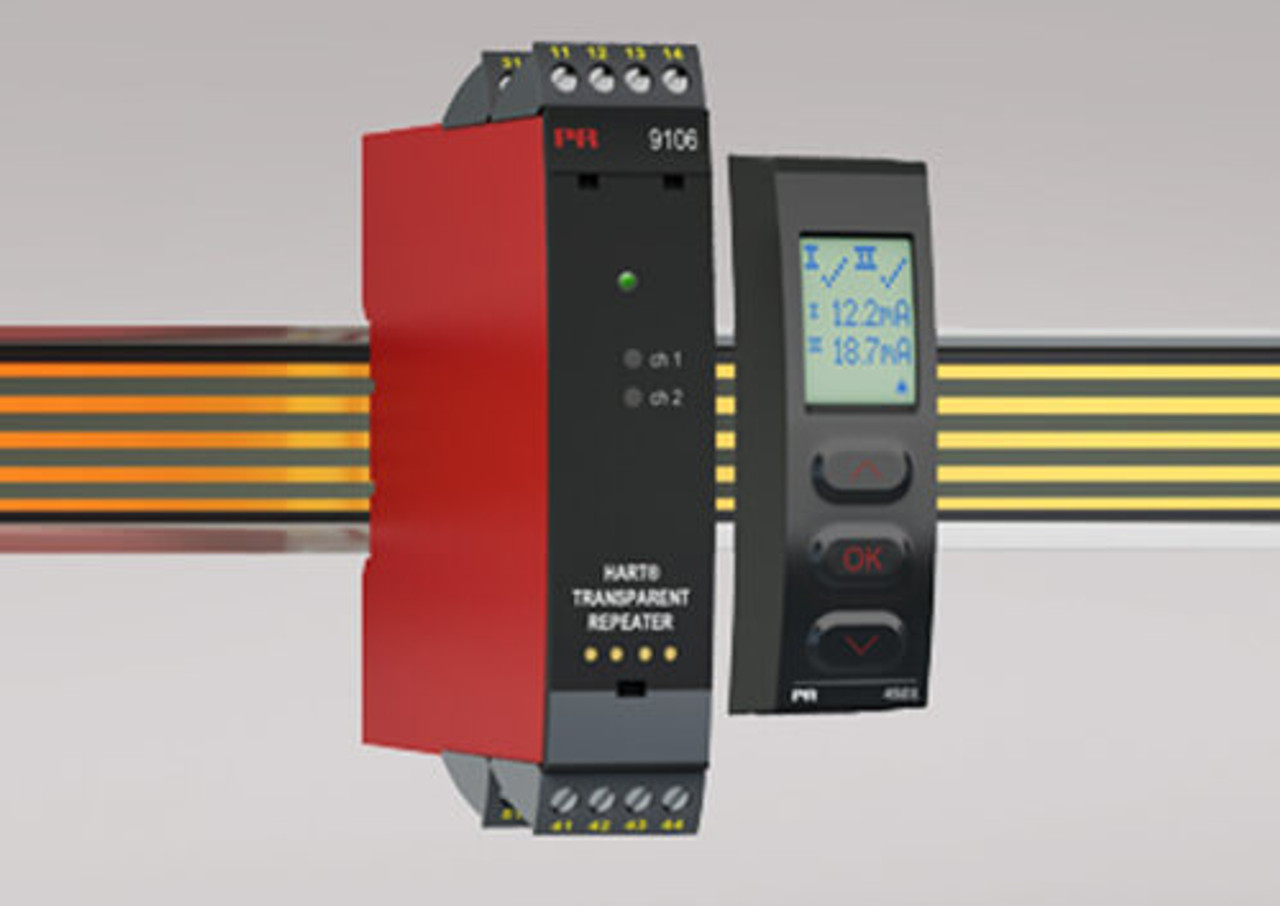

PR Electronics 9106A2A HART isolated transparent repeater

236.00€
SKU:
9106A2A
Availability:
Normally this product will be shipped in 3 weeks excluding weekends
Shipping:
Calculated at Checkout
Application: designed for use to power, isolate, convert of mA signals + HART to analogue mA signals + HART
Number of channels: 1
Mounting:  Power rail or DIN rail
Function:  24VDC power supply via power rail or connectors
active and passive mA output
splitter function
SIL2/SIL3
detachable display 4501/4511
Input:  15 V / 20 mA
Output:  mA, status relay
Supply voltage:  19.2 ÷ 31.2VDC
Accuracy: ±0.1% of span
Isolation voltage:  2.6 kVAC
Response time: < 5ms
Ambient temperature:  -20 ÷ 60ºC
Programming:

45XX or HART

Protection class:

IP20 / 50

Dimensions (H x W x D):

109 x 23.5 x 104 mm

Weight:

250gr

Approvals:

ATEX (zone 2), DNV, SIL2/3..

Item has 12 month warranty counting from the date when item was invoiced
