If you've ever ordered a pressure transmitter and watched it underperform within a year, you already know the problem isn't usually the brand. It's the spec sheet. Pressure transmitters get returned, replaced early, or quietly tolerated at "good enough" accuracy far more often than they actually fail outright — and almost every time, the root cause traces back to one of three choices made before the order was even placed: range, output signal, or process connection.

This guide walks through exactly how to make those three calls correctly, plus the handful of secondary specs that decide whether your transmitter lasts five years or fifteen months. By the end, you'll know precisely what to look for — and we'll point you to real transmitters that match.

Start With Range, Not the Brand

The single most common mistake in transmitter selection is picking a range that's simply too wide "to be safe."

Pressure transmitters are most accurate near the middle of their calibrated span. A transmitter rated for 0–50 bar that's spending its life monitoring a process that runs at 8–12 bar is operating in the noisy bottom fifth of its range, where the same percentage-of-full-scale error translates into a much larger real-world deviation. You bought headroom you don't need and gave up precision you do.

The fix is a three-number exercise before you shop:

• Minimum operating pressure — the lowest your process actually runs at day to day
• Normal operating pressure — where it sits most of the time (this is the number that matters most)
• Maximum operating pressure — including spikes, surges, and startup transients, not just steady-state

A widely used rule of thumb in the field: size your transmitter so its upper range value sits at roughly 1.5 times your expected maximum pressure. That gives you margin for transients without burying your normal operating point near the bottom of the scale. If your process runs at 20 bar with occasional spikes to 28, a 0–40 bar transmitter will track your day-to-day pressure accurately and shrug off the spikes — a 0–100 bar unit will technically survive, but you'll be measuring in the mud the whole time.

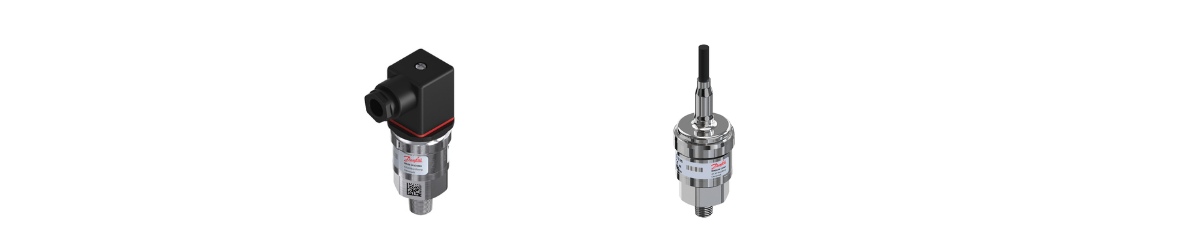

Browse our full range of Danfoss AKS 32 pressure transmitters, available from -1 to 12 bar all the way up to -1 to 50 bar, so you can match the span to your process instead of rounding up to whatever's in stock.

Match the Output Signal to Your Control System — Not the Other Way Around

This is the spec people get wrong most often simply because they don't check it until the transmitter is already on the bench, cable in hand, and the PLC input card doesn't agree with it.

Three outputs dominate the market:

4-20mA current loop — the industry default for a reason. It's noise-resistant over long cable runs, easy to wire into almost any PLC or DCS analog input, and self-diagnosing in a basic sense (a reading of 0mA usually means a wiring fault, not a real zero pressure). If you're not sure what your system expects, this is the safe default.

0-10V or 1-5V voltage output — common in HVAC, building automation, and shorter-run installations where the controller specifically calls for voltage. Less tolerant of long cable runs and electrical noise than current loop, but simpler to wire when your controller's input card is voltage-based.

Digital/fieldbus output — used where the transmitter needs to talk directly to a network (Modbus, HART, etc.) rather than a simple analog signal, typically in larger or more instrumented systems.

Before you order, open your control panel or PLC documentation and confirm what the analog input card actually accepts. It sounds obvious. It's also the single most common reason transmitters get returned — not because the transmitter was wrong, but because nobody checked the receiving end first.

Our AKS 32 series ships in 1-5VDC, 0-10VDC, and 4-20mA variants across the same range options, so you can lock in the right signal type without compromising on the pressure span you actually need.

Process Connection: The Detail That Stops a Project Cold

Range and signal get the attention. Process connection is the one that causes a same-day scramble when it's wrong, because by the time someone notices, the transmitter is already unboxed and the fitting on the tank or pipe doesn't match.

Common threads you'll run into:

• G3/8A — standard metric/BSP thread, common in European-built systems
• 1/4-18 NPT — standard in US-built skids and equipment
• 1/4 flare (7/16-20 UNF) — common on refrigeration and some hydraulic systems

Mixing these up means an adapter fitting at best, or a returned transmitter and a delayed startup at worst. If you're replacing an existing unit, the fastest way to get this right is to read the old transmitter's connection straight off its nameplate rather than guessing from memory. If you're speccing a new install, check the tank or pipe fitting before you order, not after.

Three Specs That Don't Get Enough Attention

Process temperature range. A transmitter rated to 85°C looks fine on paper until it's mounted directly on a steam line or a compressor discharge running hotter than the sensor body can handle long-term. Check the process temperature rating, not just the ambient rating — they're often listed separately, and the process number is the one that matters if the transmitter sits in direct contact with the medium.

Accuracy class. ±0.3% FS sounds precise in isolation, but it only means something relative to your range. On a 0–10 bar transmitter, that's roughly ±0.03 bar — plenty for most monitoring applications. On a 0–100 bar transmitter measuring a process that normally runs at 5 bar, that same percentage becomes a much bigger chunk of your actual operating range. This is the same range-sizing logic from the first section, showing up again from a different angle.

Wetted material compatibility. What touches the diaphragm matters more than what's painted on the housing. Clean dry air or water is forgiving of almost any standard build. Anything corrosive, high-viscosity, or prone to crystallizing — process chemicals, slurries, some refrigerants — needs a transmitter rated for that specific medium, or you'll be replacing diaphragms instead of just monitoring pressure.

Putting It Together

Here's the order that actually prevents returns and re-orders:

1. Nail down your minimum, normal, and maximum operating pressure
2. Size the range so normal operating pressure sits in the middle third of the span (roughly 1.5× max pressure as your upper range value)
3. Confirm what your control system's input card actually accepts — 4-20mA, 0-10V, or 1-5V
4. Match the process connection thread to your actual fitting, not the one you remember
5. Check process temperature and wetted material compatibility against your actual application

Get those five right, and brand becomes a much smaller decision — mostly a question of lead time, certification needs, and what's already standardized in your plant.

If you'd rather skip the spec-sheet archaeology, our team can match a transmitter to your application directly. Send us your range, signal, and connection requirements at support@shoptransmitter.com, or browse the full AKS 32 pressure transmitter lineup and filter by measuring range to find your match in a couple of minutes.

Sizing pressure for a related application? See our guide on pressure transmitter basics, types, and working principles for the fundamentals, or check air pressure regulators if you're working on the pneumatic side of the system.
