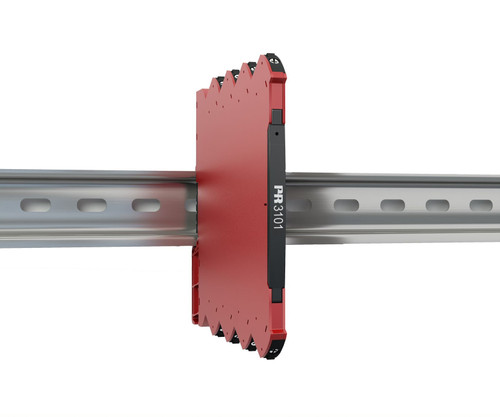

Product Description
| Application: | designed to use for conversion of PT100, TC signals to a mA current signal, loop powered |
| Mounting: | DIN rail (35mm) |
| Temperature range: | -200 ÷ 850ºC (Pt100) -180 ÷ 1372ºC (TC) |
| Input: | PT100, TC (J, K) |
| Output: | 4 ÷ 20 mA (passive) / Namur NE43 (3.5/23mA) |
| Temperature compensation: | Internal CJC and External CJC |
| Supply voltage: | 5.5 ÷ 35VDC (loop powered) |
| Accuracy: | ±0.05% of span |
| Isolation voltage: | 2.5 kVAC |
| Response time: | 30 / 300ms (selectable) |
| Ambient temperature: | -25 ÷ 70ºC |
| Programming: | DIP switch |
| Protection class: | IP20 |
| Dimensions: | 113 x 6.1 x 115 mm |
| Weight: | 70gr |
| Approvals: | ATEX (zone 2), IECEx, FM, DNV (Marine) |
