Product Description

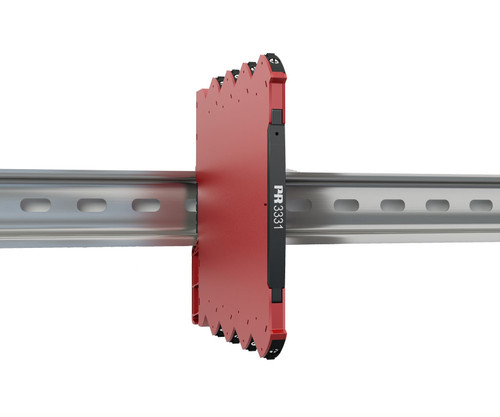

| Application: | designed to use for conversion of Pt100 signal to a standard analog current signal |
| Mounting: | DIN rail (35mm) / Power rail |
| Temperature range: | -200 ÷ 850ºC |
| Input: | Pt100 |
| Output: | 4 ÷ 20 mA / Namur NE43 (3.5/23mA) 0/1 ÷ 5VDC / 0/2 ÷ 10VDC |
| Supply voltage: | 16.8 ÷ 31.2VDC and Power rail |
| Accuracy: | ±0.05% of span |
| Isolation voltage: | 2.5 kVAC |
| Response time: | 30 / 300ms (selectable) |
| Ambient temperature: | -25 ÷ 70ºC |
| Programming: | DIP switch |
| Protection class: | IP20 |
| Dimensions: | 113 x 6.1 x 115 mm |
| Weight: | 70gr |
| Approvals: | ATEX (zone 2), IECEx, FM, DNV (Marine) |
