Product Description

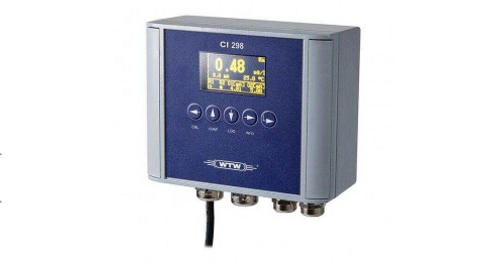

Monitor for direct connection of analogue pH/ORP electrodes, with 2 analog and relay outputs, Modbus, 115V/230V and NTC.
Other Details
Item has 12 month warranty, counting from the date when the invoice was issued.Product Videos
Custom Field
Parameter pH / ORP
Range -2 ÷ 16pH; -2000 ÷ 2000mV
Temperature -10 ÷ 130°C NTC
Temperature Compensation Automatically via temperature measurement in the sensor or via manual input
Relays 2 x switching contacts, change-over, max. 250 VAC / 5 A
Current Outputs 2 x 0( 4) ÷ 20 mA
Digital Interface Modbus / RS 485 USB (for configuration, calibration, data recording)
Display OLED (128 x 64 pixel) with plain text menu
Data Logger Integrated with real time clock for 4000 datasets, storable via USB, grafical display
Supply Voltage 100 ÷ 240VAC or 18 ÷ 36 VDC
Ambient Temperature -10 ÷ 55°C
Protection Class IP65
Material Cast aluminium for wall mounting
