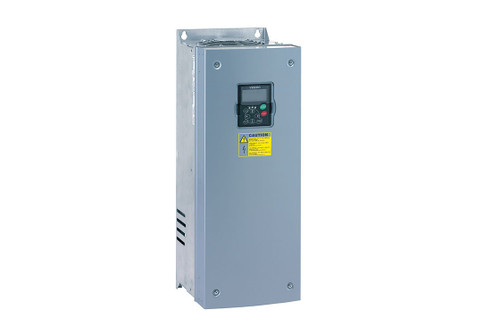

Product Description
| Application: | designed for control of pumps, fans, conveyors, cranes, lifts, elevators, feeders, mixers. |
| Frame: | FR5 |
| Overload: | 110% / 150% |
| Power: | 7.5kW (110% 1min/10min) 5.5kW (150% 1min/10min) |
| Current: | 16A (110% 1min/10min) 12A (150% 1min/10min) |
| Voltage: | 380 ÷ 500VAC |
| Input: | 2 x AI 6 x DI 10V, ref. 24V in |
| Output: | 1 x AO 1 x DO 2 x RO + TI |
| Communication Modules (Optional): | RS 485, ModBus/TCP, Profibus DP, DeviceNet, CANopen.. |
| Braking: | DC brake: 30% of TN (without brake resistor), flux braking |
| Emissions: | EMC class H |
| Protection Class: | IP21 |
| Dimensions (W X H X D): | 144 x 391 x 214mm |
| Weight: | 8.1kg |
| Approvals: | see data sheet |
