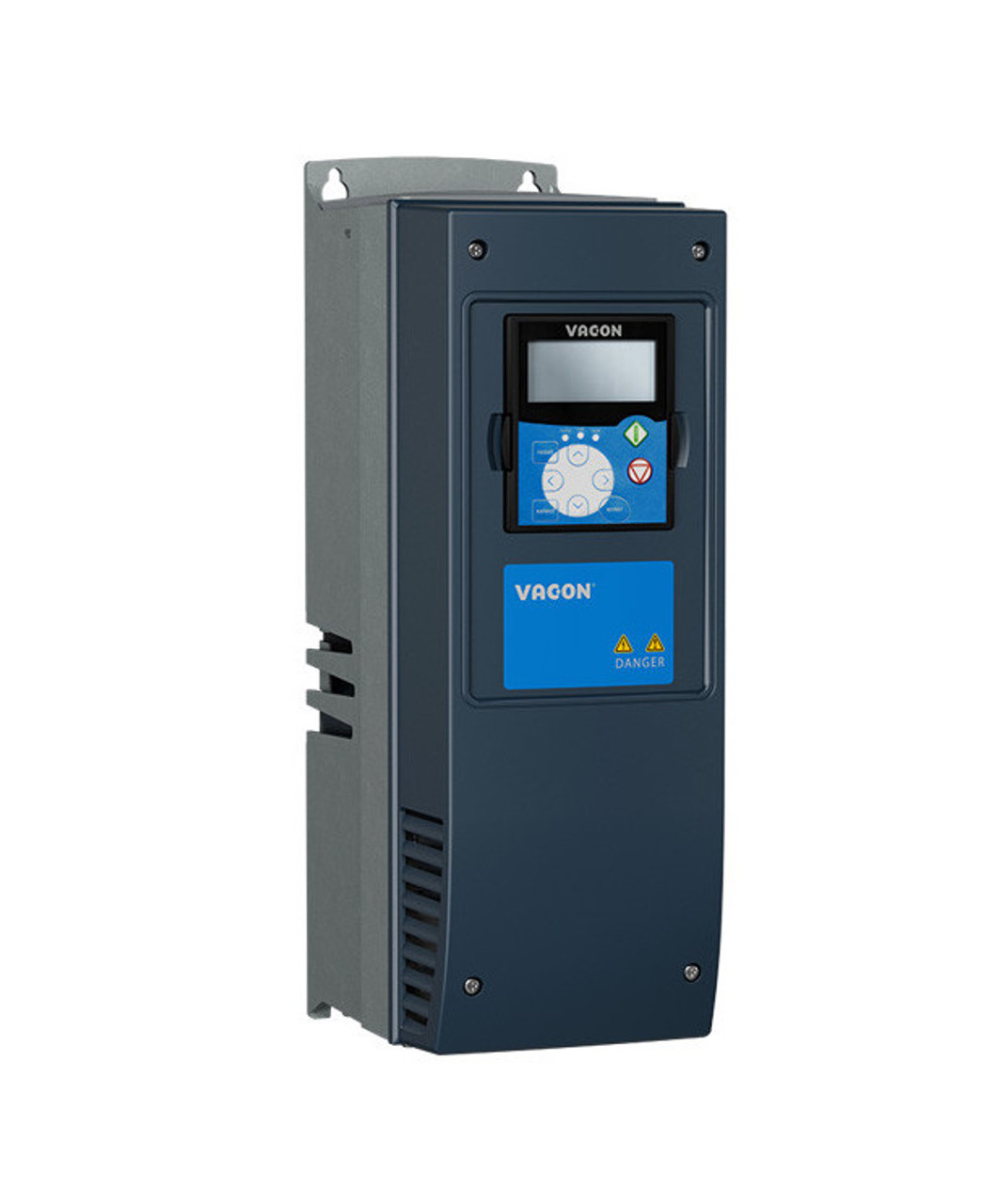

Product Description
| Application: | designed for control of pumps, fans, conveyors, cranes, lifts, elevators, feeders, mixers. |
| Frame: | FR8 |
| Overload: | 110% / 150% |
| Power: | 55kW (110% 1min/10min) 45kW (150% 1min/10min) |
| Current: | 62A (110% 1min/10min) 52A (150% 1min/10min) |
| Voltage: | 525 ÷ 690VAC |
| Input: | 2 x AI 6 x DI 10V, ref. 24V in |
| Output: | 1 x AO 1 x DO 2 x RO + TI |
| Other Basic I/O Modules: | Encoder TTL (2 x DI), HTL (2 x DI), double HTL Encoder HTL type (divider + direction) Sin/Cos encoder interface |
| Communication Modules (Optional): | RS 485, ModBus, Profinet, Ethernet/IP, Profibus DP, Devicenet, CANopen.. |
| Braking: | DC brake: 30% of TN (without brake resistor), flux braking |
| Emissions: | EMC class L |
| Protection Class: | IP54 |
| Dimensions (W X H X D): | 291 x 758 x 344mm |
| Weight: | 58kg |
| Approvals: | SIL2, 94/9/EC, CE 0537 Ex 11 (2) GD (thermistor), Marine |
