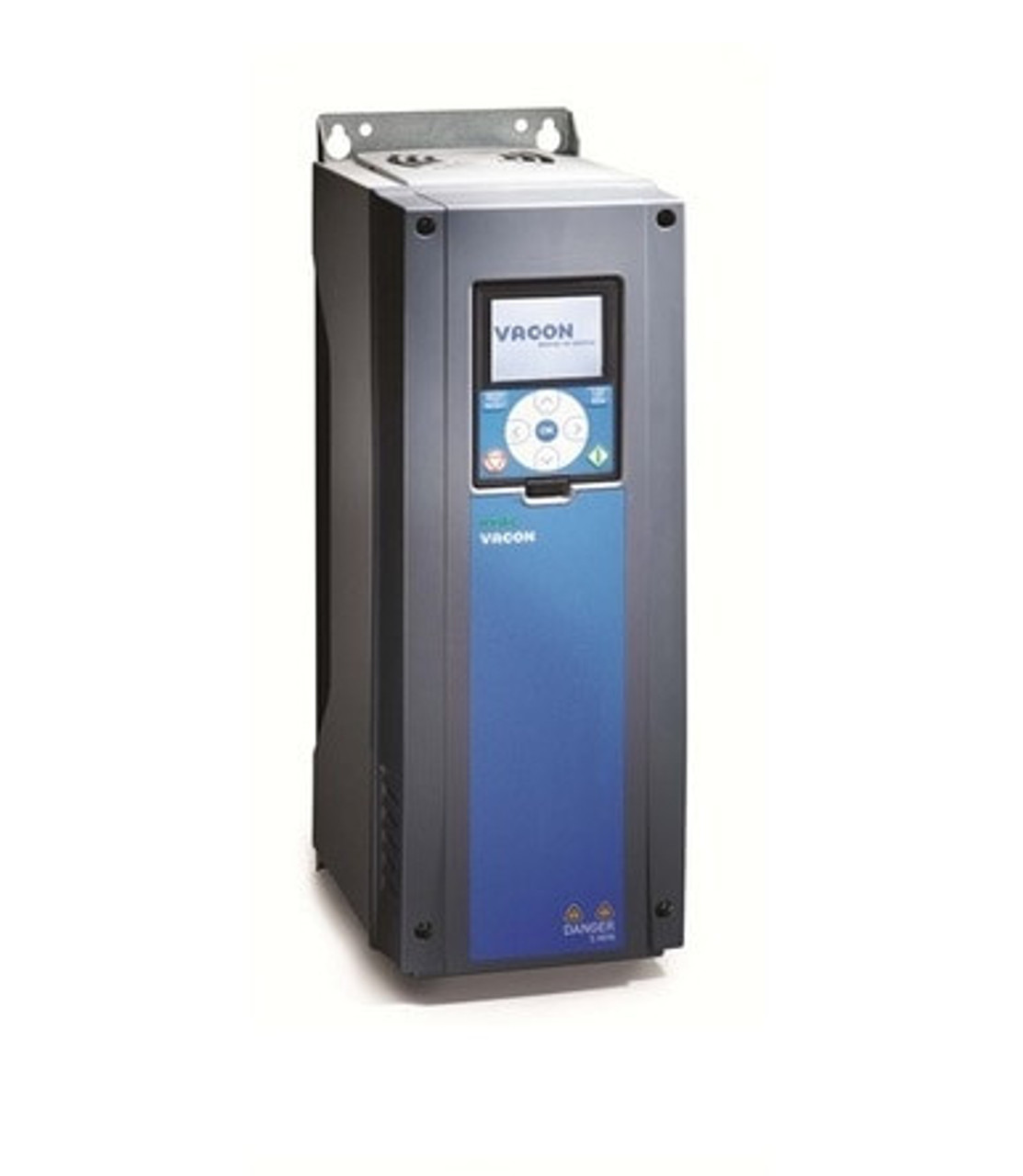

Product Description
| Application: | designed for control of pumps, fans, compressors, blowers.. |
| Frame: | MR4 |
| Low/High Loadability: | 110% |
| Power: | 1.5kW (110% 1min/10min) |
| Current: | 4.8A (110% 1min/10min) |
| Voltage: | 380 ÷ 500VAC |
| Input: | 2 x AI 6 x DI 10V, ref. 24V in |
| Output: | 1 x AO 3 x RO 2 x RO + TI 2 x 24V out Built in modules: Modbus TCP/IP, BACnet IP, PROFINET, EtherNet/IP |
| Braking Chopper: | integrated |
| DC Choke: | integrated |
| Emissions: | EMC class 2 |
| Protection Class: | IP54 |
| Dimensions (W X H X D): | 128 x 328 x 190mm |
| Weight: | 6kg |
| Approvals: | SIL3, DNV -GL, BV, LR, ABS and RINA |
