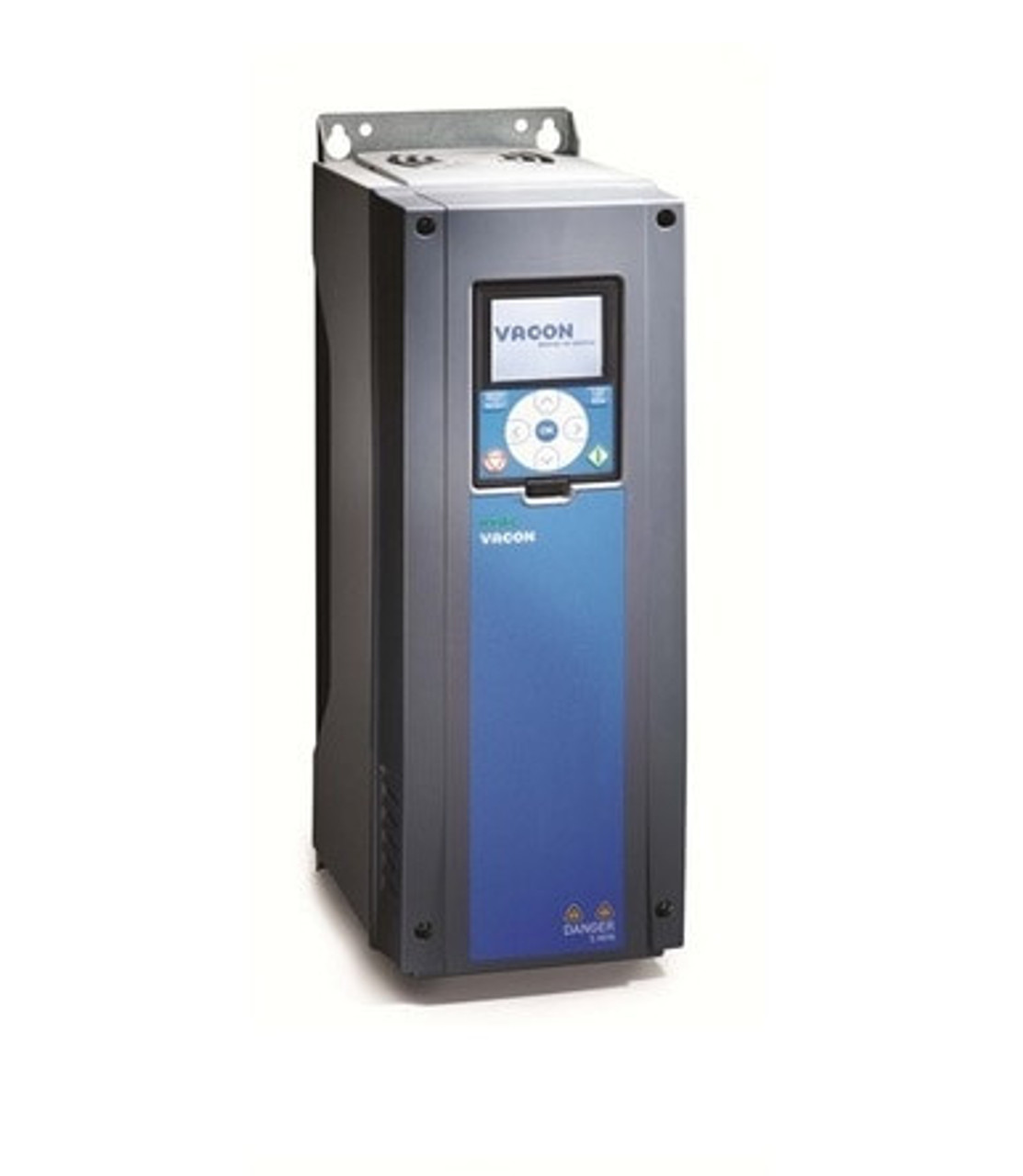

Product Description
| Application: | designed for control of pumps, fans, compressors, blowers.. |
| Control Performance: | Open loop vector control (5-150% of base speed) Ramp times (acceleration and deceleration): 0.1-3000 s |
| Frame: | MR6 |
| Low/High Loadability: | 110% |
| Power: | 22kW (110% 1min/10min) |
| Current: | 46A (110% 1min/10min) |
| Voltage: | 380 ÷ 500VAC |
| Input: | 2 x AI 6 x DI 10V, ref. 24V in |
| Output: | 1 x AO 3 x RO 2 x RO + TI 2 x 24V out Built in modules: Modbus TCP/IP, BACnet IP, PROFINET, EtherNet/IP |
| Braking Chopper: | integrated |
| DC Choke: | integrated |
| Emissions: | EMC class 2 |
| Protection Class: | IP21 |
| Dimensions (W X H X D): | 195 x 557 x 229mm |
| Weight: | 20kg |
| Approvals: | SIL3, DNV -GL, BV, LR, ABS and RINA |
