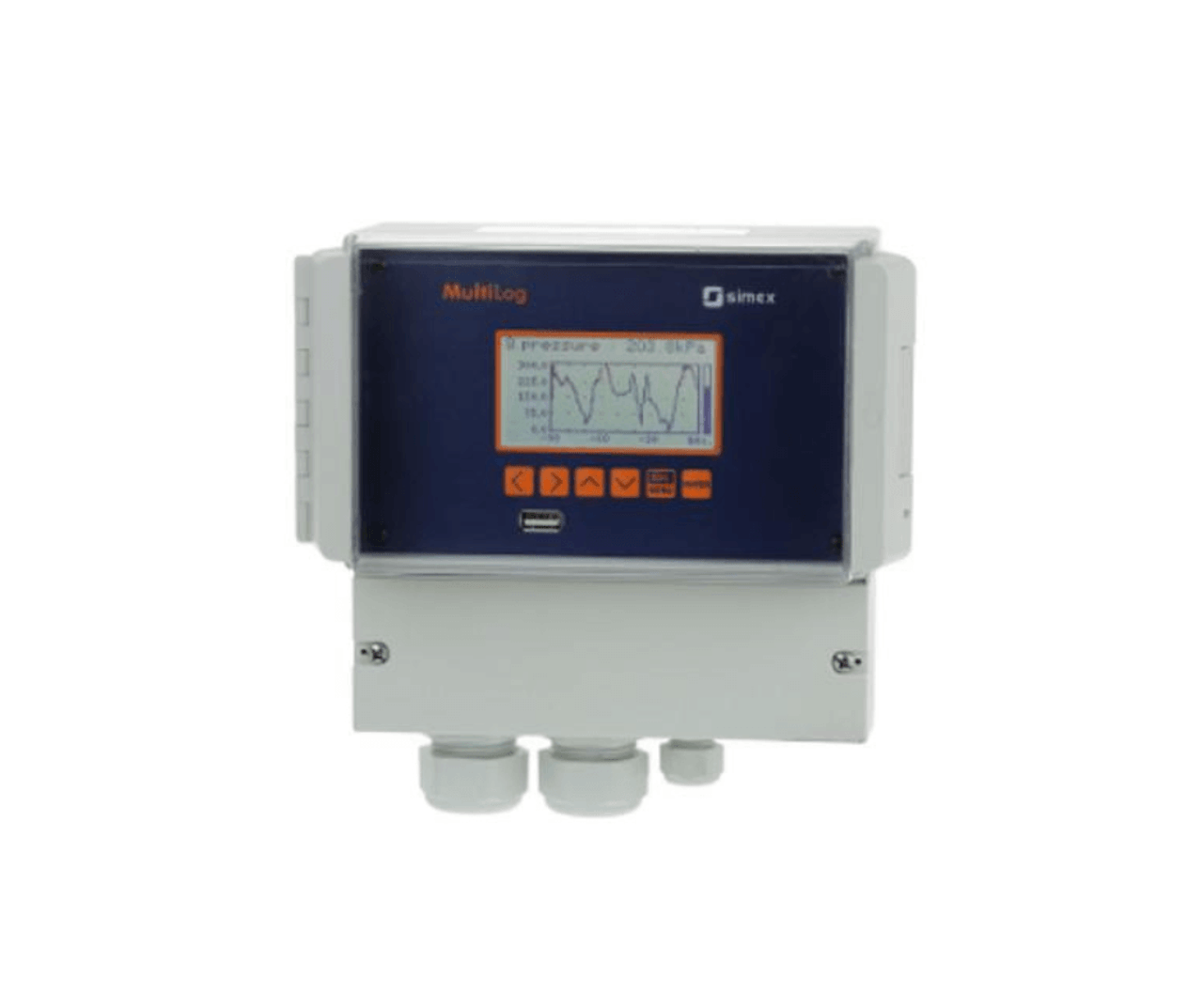

Product Description
| Application: | designed to display, store and control of process parameters |
| Number Of Channels: | 1 / 4 / 8 channels |
| Display: | graphic LCD, 128 x 64 pxs, with backlight (amber or white) |
| Inputs: | 1 x current (mA) |
| Outputs: | 2 x relay |
| Power supply: | 85 ÷ 260V AC/DC |
| Communication Interfaces: | RS485 (Modbus RTU), USB |
| Data Memory: | 8MB (3000000 data records) |
| Data Recording Period: | 1s ÷ 60min |
| Ambient Temperature: | 0 ÷ 50ºC (option: -20 ÷ 50ºC) |
| Protection Class: |
IP65 or IP 40 (front USB) |
| Material: |
ABS case, polycarbonate front panel, wall mount |
| Dimensions (H X W X D): |
166 x 161 x 103 mm |
| Approvals: |
CE |
