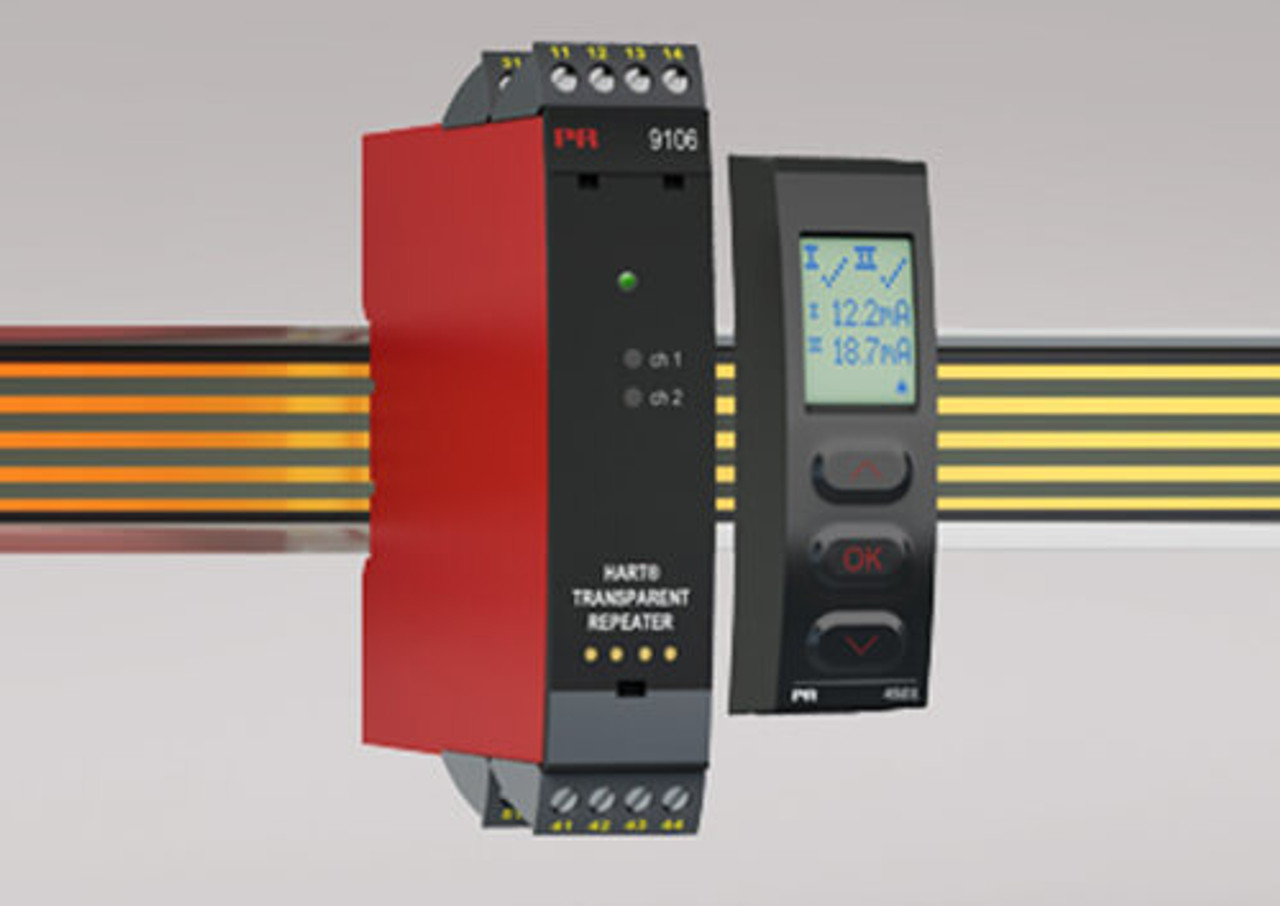

Product Description
Application: | designed for use to power, isolate, convert of mA signals + HART to analogue mA signals + HART |
Number of channels: | 2 |
Mounting: | Power rail or DIN rail |
Function: | 24VDC power supply via power rail or connectors active and passive mA output splitter function SIL2/SIL3 detachable display 4501/4511 |
Input: | 16 V / 20 mA |
Output: | mA, status relay |
Supply voltage: | 19.2 ÷ 31.2VDC |
Accuracy: | ±0.1% of span |
Isolation voltage: | 2.6 kVAC |
Response time: | < 5ms |
Ambient temperature: | -20 ÷ 60ºC |
Programming: | 45XX or HART |
Protection class: | IP20 / 50 |
Dimensions (H x W x D): . | 109 x 23.5 x 104 mm |
Weight: | 250gr |
Approvals: | ATEX (zone 2), DNV, SIL2/3.. |
