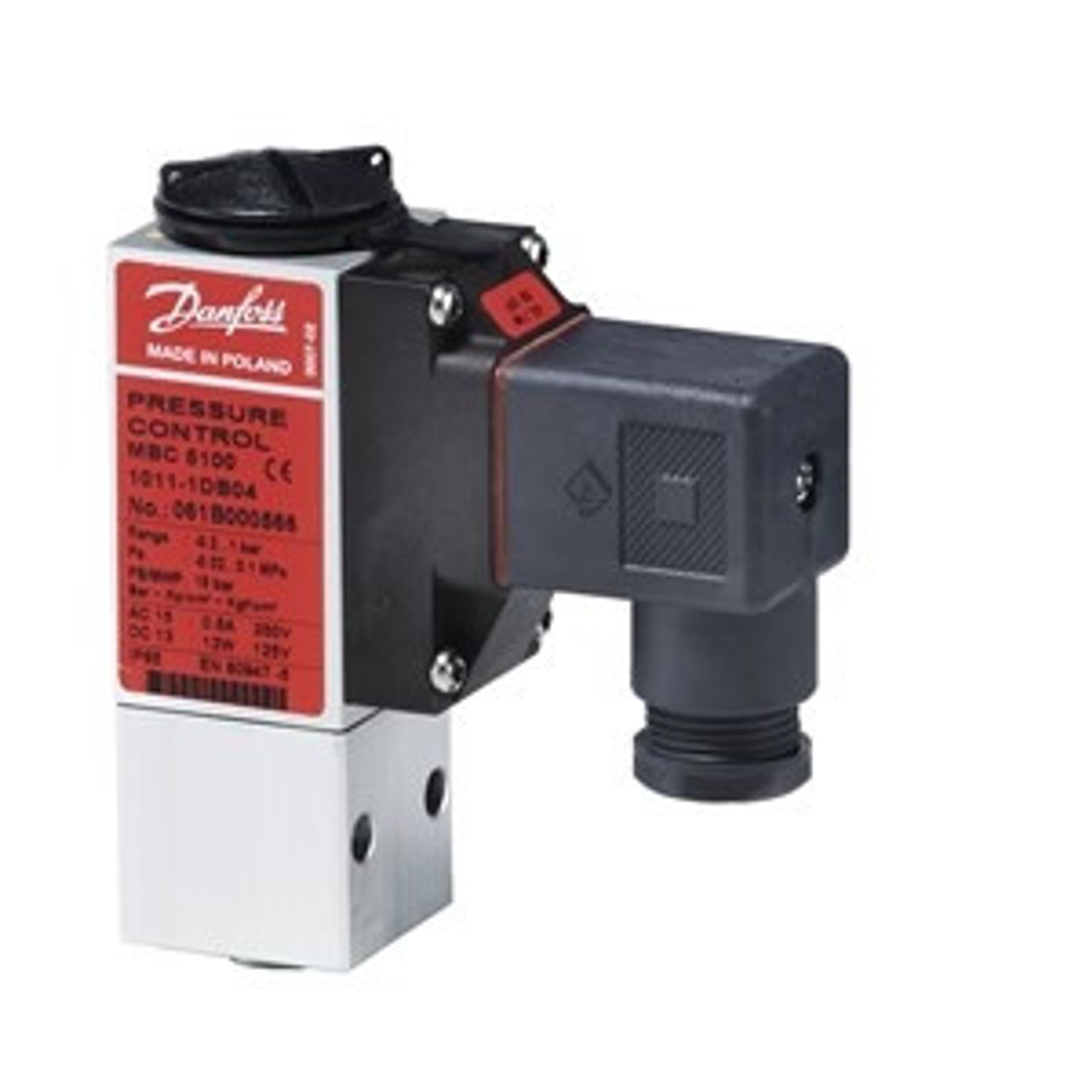

Product Description
| Application: | Designed for use with liquids and gases |
| Range: | 1 ÷ 6 bar |
| Differential: | 1 ÷ 2.5 bar (@Pmin ÷ Pmax) |
| Accuracy: | ±0.5% (typ.) |
| Max. operating pressure: | 150bar |
| Reset function: | AUTO |
| Output: | 1 x SPDT |
| Contact load: | AC15: 0.5A/250V; DC3:12W/125V |
| Medium temperature: | -10 ÷ 85ºC |
| Ambient temperature: | -40 ÷ 85ºC |
| Materials: | see data sheet |
| Process connection: | G1/4" with flange |
| Cable entry: | Pg11 |
| Protection class: | IP65 |
| Approvals: | CE, Marine |
