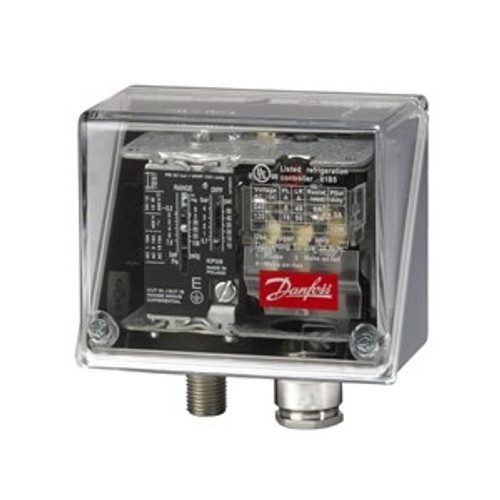

Product Description
| Application: | Designed for use with liquids and neutral gases |
| Range: | -0.2 ÷ 8 bar |
| Differential: | 0.4 ÷ 1.5 bar |
| Max. operating pressure: | 18bar |
| Reset function: | AUTO |
| Output: | 1 x SPDT |
| Contact load: | AC1:10A/440V; AC3:6A/440V; DC3:12W/220V |
| Medium temperature: | -40 ÷ 100ºC |
| Ambient temperature: | -40 ÷ 65ºC |
| Materials: | Bellow: Phosphor bronze (see data sheet) Pressure connector: Brass (see data sheet) Contact material: silver or gold plated |
| Process connection: | G1/4" |
| Cable entry: | Pg13.5 (∅6 ÷ 14 mm) |
| Protection class: | IP30 IP44 (please order top cover, code no. 060-109766 separately) IP55 (please order special enclosing code no. 060-033066 or 060-062866 separately) |
