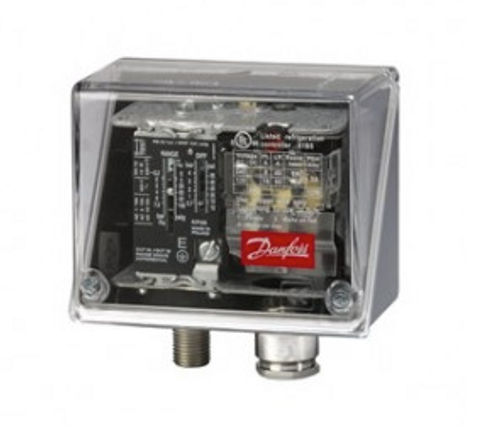

Product Description
| Application: | Designed for use with gases |
| Range: | -0.2 ÷ 7.5 bar |
| Differential: | 0.7 ÷ 4 bar |
| Max. operating pressure: | 17bar |
| Reset function: | AUTO |
| Output: | 1 x SPDT |
| Contact load: | AC1:16A/400V; AC3:16A/400V; DC13:12W/220V |
| Medium temperature: | -40 ÷ 100ºC |
| Ambient temperature: | -40 ÷ 65ºC |
| Materials: | Bellow: Phosphor bronze (see data sheet) Pressure connector: Free-cutting stee (see data sheet) Contact material: silver |
| Process connection: | G1/4" |
| Cable entry: | Pg13.5 (∅6 ÷ 14 mm) |
| Protection class: | IP55 |
