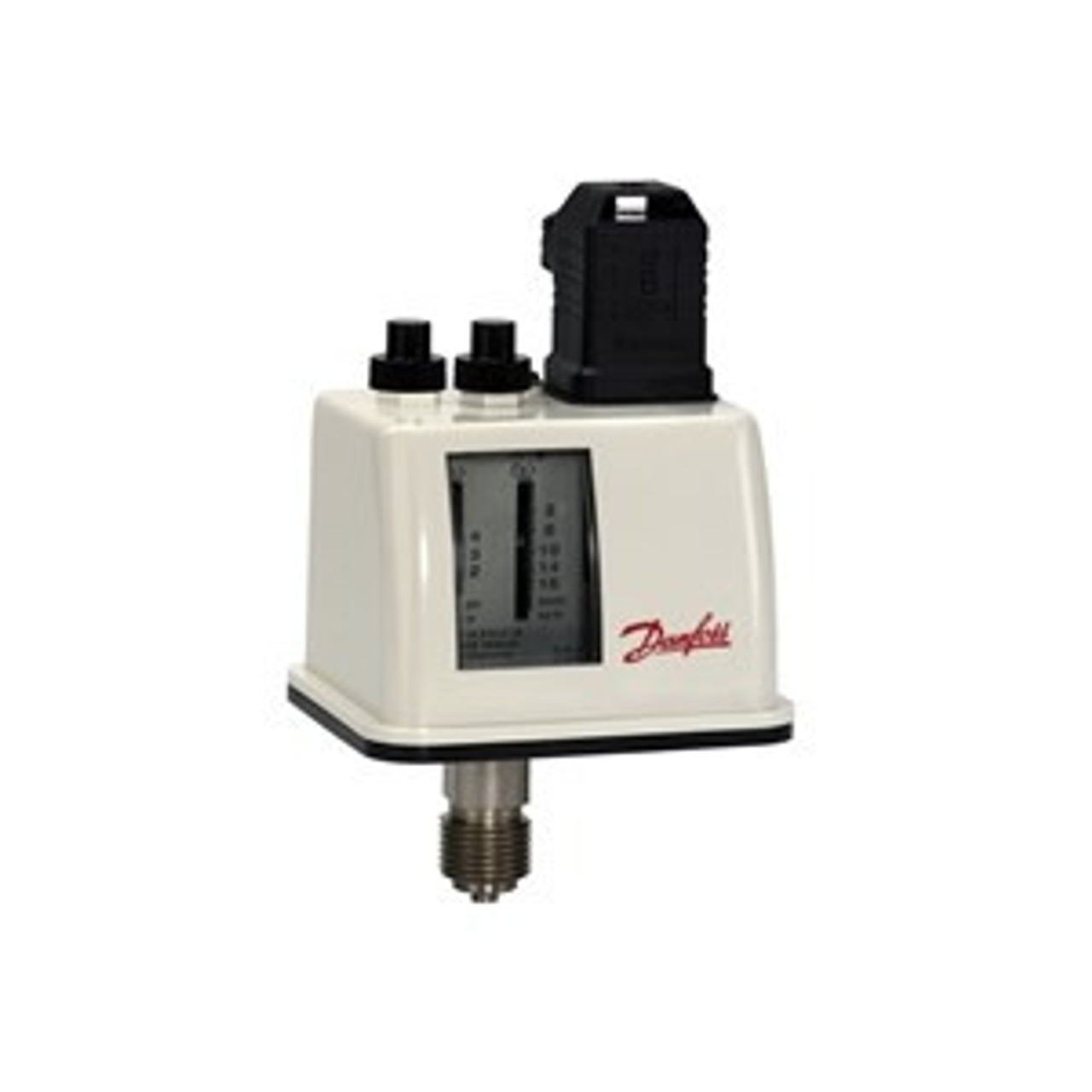

Product Description
| Application: | Designed for use for boiler application, activates at increasing pressure, suitable for steam, water, air |
| Range: | 2.0 ÷ 16bar |
| Differential: | 1.2 bar |
| Max. operating pressure: | 32bar |
| Reset function: | MANUAL |
| Output: | 1 x SPDT |
| Contact load: | AC1:6A/250V; AC3:1A/250V; DC3:10W/250V |
| Medium temperature: | 120ºC |
| Ambient temperature: | -20 ÷ 70ºC |
| Materials: | Bellow: st. steel 1.4306 (see data sheet) Pressure connector: steel nikel plated (see data sheet) Contact material: silver |
| Process connection: | G1/2" |
| Cable entry: | DIN 43650, Pg 11 |
| Protection class: | IP65 |
| Approvals: | CE, SIL2 |
