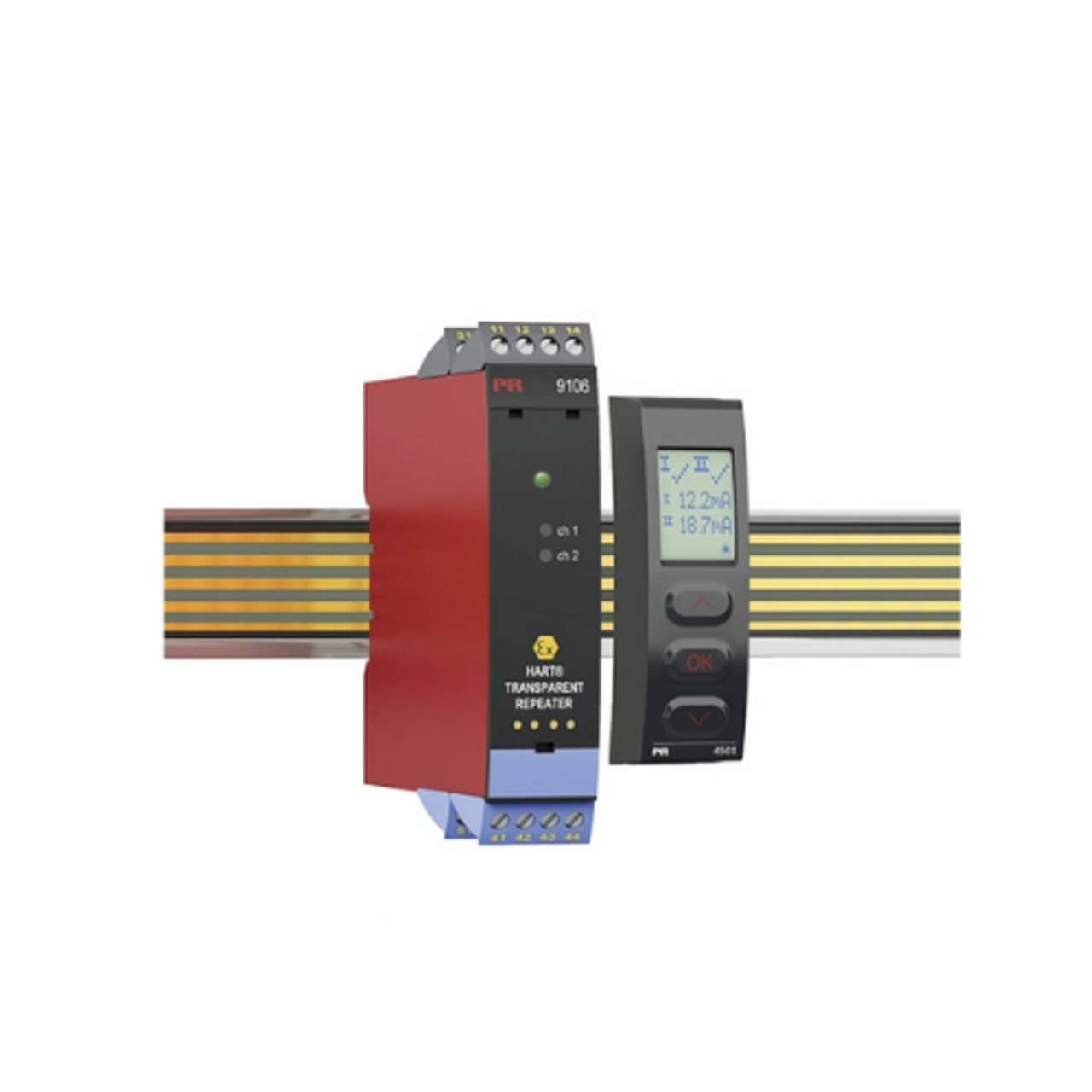

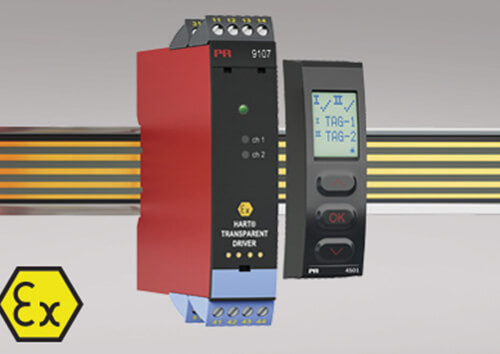

Product Description
| Application: | designed for intrinsic safety application and is used to isolate, convert of mA signals + HART to analogue mA signals + HART in hazardous areas |
| Number of channels: | 1 or 2 |
| Mounting: | Power rail or DIN rail |
| Function: | 24VDC power supply via power rail or connectors active and passive mA output splitter function SIL2/SIL3 detachable display 4501/4511 can be mounted in the safe area or in zone 2 / Cl. 1, div. 2 and transmit signals to zone 0, 1, 2 and zone 20, 21, 22 |
| Input: | 4 ÷ 20mA, HART |
| Output: | 4 ÷ 20mA, HART (active/passive) |
| Supply voltage: | 19.2 ÷ 31.2VDC |
| Accuracy: | ±0.1% of span |
| Isolation voltage: | 2.6 kVAC |
| Response time: | < 5ms |
| Ambient temperature: | -20 ÷ 60ºC |
| Programming: |
45XX or HART |
| Protection class: |
IP20 |
| Dimensions (H x W x D): |
109 x 23.5 x 104 mm |
| Weight: |
250gr |
| Approvals: |
ATEX II (1) G Exia Ga IIC/IIB/IIA, DNV, SIL2/3.. |
