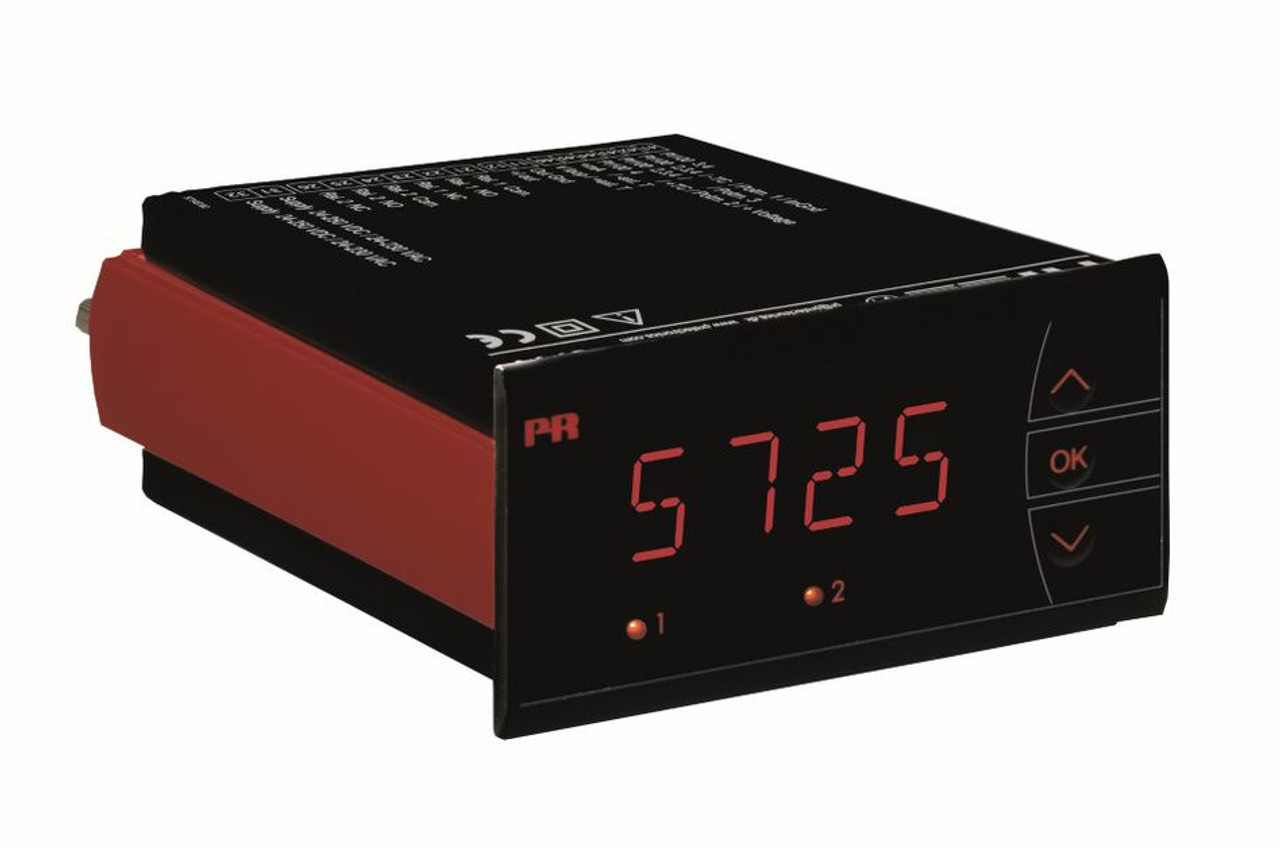

Product Description
| Application: | design for measurement of PNP, NPN, contact, NAMUR, S0, Tacho and TTL and conversion to mA, relays signals |
| Display: | 4 - digits (-1999 ÷ 1999) LED, 13.8mm / 14-segments characters, |
| Input: | Frequency: 0.001Hz ÷ 50kZ PNP/NPN, NAMUR, Tacho, S0, TTL, special voltage, special current |
| Supply voltage: | 21.6 ÷ 253 VAC / 19.2 ÷ 300VDC |
| Accuracy: | ±0.05% of span |
| Isolation voltage: | 2.3 kVAC |
| Response time: | < 1 cycle + 100ms |
| Ambient temperature: | -20 ÷ 60ºC |
| Protection class: | IP65 (front) |
| Dimensions (H x W x D): | 48 x 96 x 120 mm / cut out: 44.5 x 91.5mm |
| Weight: | 230gr |
| Approvals: | DNV (marine), UL |
