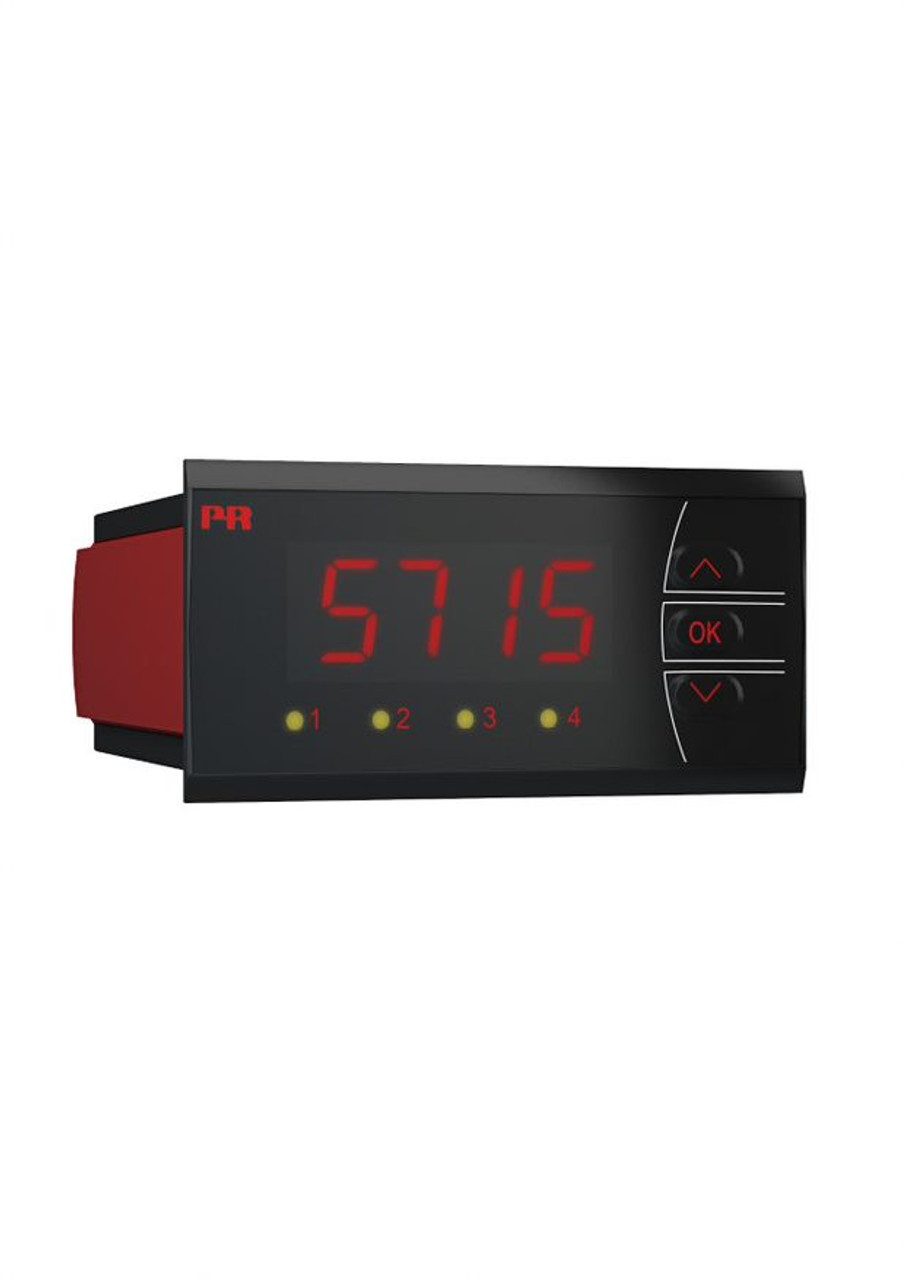

Product Description
| Application: | designed for digital readout and conversion of mA, V, Ω, RTD, TC signals to mA, relays |
| Display: | 4 - digit LED, 13.8mm / 14-segments characters |
| Additional functions: | customer linearization for tank level control |
| Input: | RTD: - 200 ÷ 850ºC TC: -200 ÷ 2300ºC Lin R: 0 ÷ 10kΩ Potm: 10Ω ÷ 100kΩ mA: 0/4 ÷ 20mA (23mA) V: 0/0.2 ÷ 1, 0/2 ÷ 10 VDC (12V) |
| Output: | 4 x relays: 250VAC/2A programmable Setpoint, Hysterisis, Sensor error (only 5714B, 5714D) |
| Temperature Compensation: | for Internal CJC |
| Supply voltage: | 21.6 ÷ 253 VAC / 19.2 ÷ 300VDC |
| Auxiliary supply voltage: | 25 ÷ 15VDC / 0 ÷ 20mA |
| Accuracy: | ±0.1% of span |
| Isolation voltage: | 2.3 kVAC |
| Response time: | 0.4 ÷ 60s |
| Ambient temperature: | -20 ÷ 60ºC |
| Protection class: | IP65 (front) |
| Programming: | PC / PReset |
| Dimensions (H x W x D): | 48 x 96 x 120 mm / cut out: 44.5 x 91.5mm |
| Weight: | 230gr |
| Approvals: | DNV (marine), UL |
