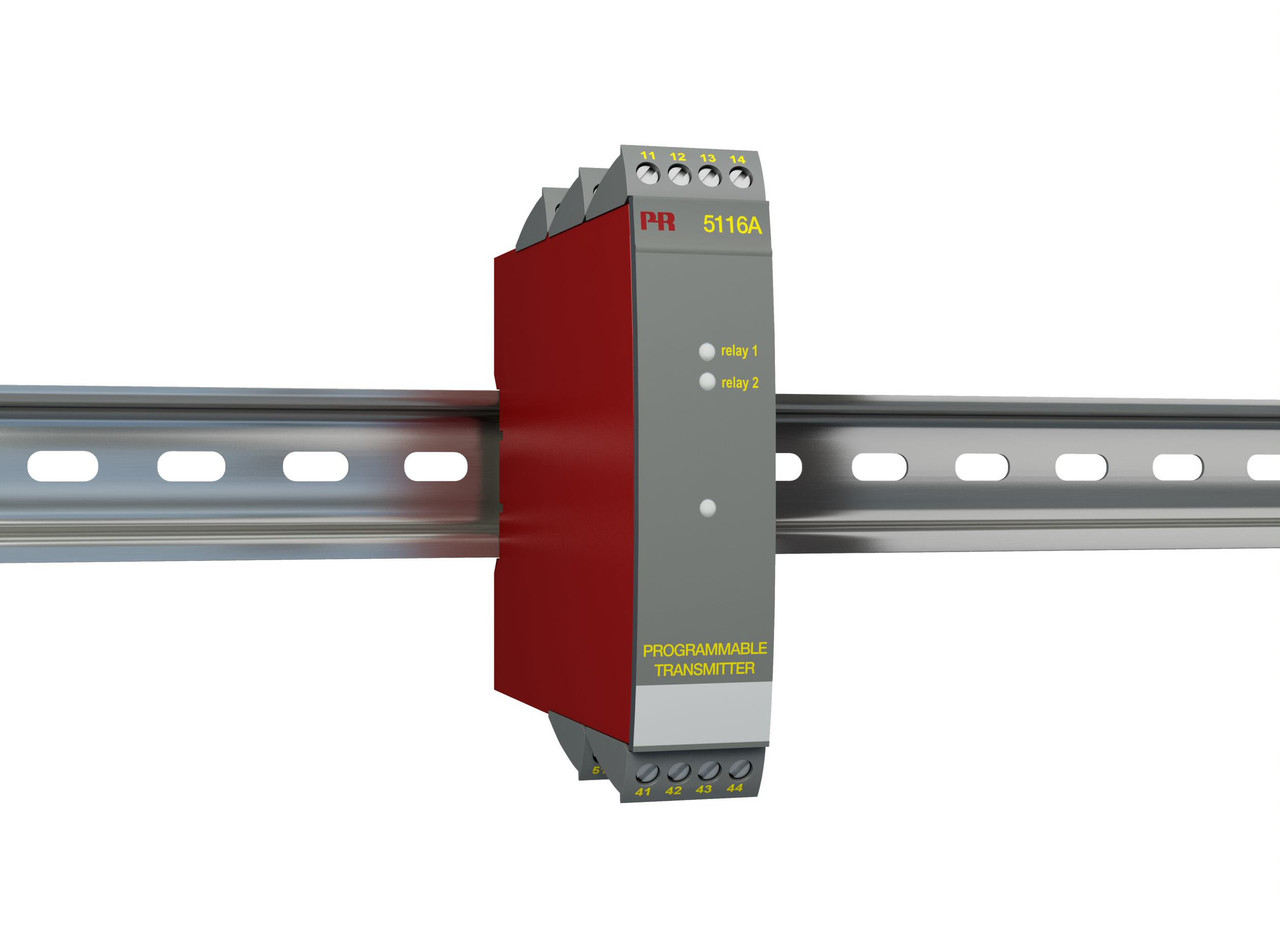

Product Description
| Application: | designed to use for conversion of RTD, TC, mV, mA, Ω, Potm signals to analogue mA, V signals + 2 x relays |
| Number of channels: | 1 |
| Mounting: | DIN rail (35mm) |
| Input: | RTD: - 200 ÷ 850ºC TC: -200 ÷ 2300ºC mA: 0 ÷ 100mA (min: 4mA) V: 0 ÷ 250 VDC / -2500 ÷ 2500mV |
| Output: | mA: 0/4 ÷ 20 mA / Namur NE43 (3.5/23mA) active or passive V: 0 ÷ 10VDC (programmable ranges) 2 x relays: 250VAC/2A programmable (increasing/decreasing, window, sensor error) |
| Temperature Compensation: | for Internal CJC remember to order CJC connectors: 5910 (ch. 1) or 5930 (ch. 2) |
| Supply voltage: | 21.6 ÷ 253 VAC / 19.2 ÷ 300VDC |
| Auxiliary supplies: | 28 ÷ 16.5VDC / 0 ÷ 20mA |
| Accuracy: | ±0.05% of span |
| Isolation voltage: | 3.75 kVAC |
| Response time: | temperature: 400msec ÷ 60 sec mA/V: 250msec ÷ 60 sec |
| Ambient temperature: | -20 ÷ 60ºC |
| Programming: | Loop Link |
| Protection class: | IP20 |
| Dimensions (H x W x D): | 109 x 23.5 x 130 mm |
| Weight: | 225gr |
| Approvals: | DNV (marine), UL |
