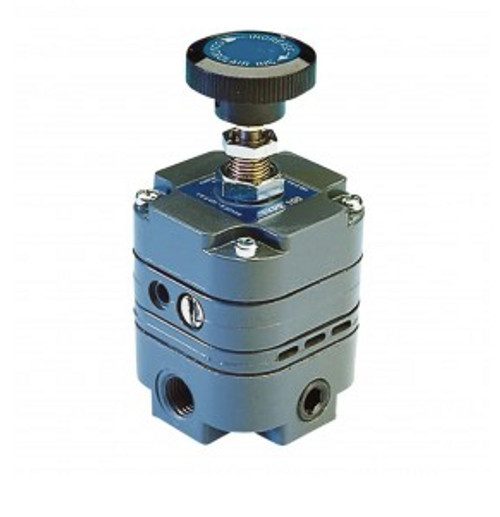

Product Description
| Output Range: | 0.14÷8.2bar (2÷120psig) |
| Supply Pressure Max.: | 10 bar (150psig) |
| Supply Pressure Variation: | <0.005psig at 1.7bar (25psig) range |
| Air Consumption: | 3 Nl/min (6.0 scfh) |
| Flow Capacity: | 420 Nl/min (14cfm) at 100psig (6.8bar) |
| Exhaust Capacity: | 311 Nl/min (11scfm) |
| Sensitivity: | 3.2mm (1.8") water |
| Temperature: | -29÷71ºC (0÷160ºF) |
| Port Size: | 1/4 BSP |
| Material: | aluminum alloy, Buna-N, other |
|
